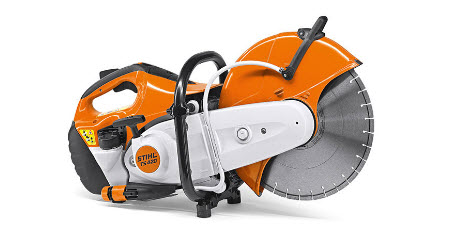

Compact and robust, the STIHL TS 420. Long-life filter system with cyclone pre-separation makes on site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics. For use with 350mm cutting wheel. ElastoStart, primer pump and decompression valve. Bayonet filler cap for tool free opening. Can be hand held or used with the FW 20 cart. Supplied with abrasive cutting wheel.

Displacement 66,7 cm³
Power output 3,2/4,4 kW/PS
Weight 1) 9,7 kg
Sound pressure level 2) 98 dB(A)
Cutting wheel 350 / 14 mm/in
Sound power level 2) 109 dB(A)
Max. cutting depth 125 mm
Vibration level left/right 3) 3,9/3,9 m/s²

Innovative cut-off machine for 350 mm abrasive cutting wheels. With extended guard adjustment and STIHL QuickStop wheel brake. The extended guard adjustment makes cut guidance significantly easier when cutting pipes, in corners and wall sections where space is limited. Fitted with electronic water control, a long-life air filter system for a long filter service life, and anti-vibration system as standard. Effortless start-up thanks to STIHL ElastoStart and a fuel-efficient 2-MIX engine.

Power output kW 3.2
Tank volume ml 710

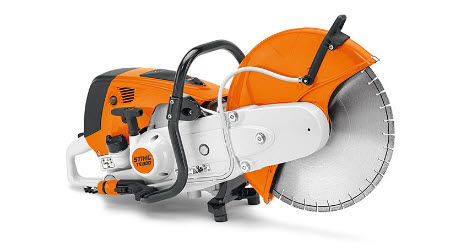

Motorni sjekač sa pločama za sječenje do 400 mm prečnika. Dostiže maksimalnu dubinu sečenja od 145mm, smanjene težine korišćenjam materijala od magnezijuma. Mogućnost montaže na vodeća kolica FW 20. Opremljen sa dekompresionim ventilom i STIHL ElastoStart-om za lako paljenje, dugoročnim filterom vazduha. Štedljiv 2-MIX motor.


ZAPREMINA MOTORA: 98.5 cc (6.0 cu. in.)
SNAGA MOTORA: 5.0 kW (6.7 KS)
TEŽINA* : 13.0 kg (28.7 lbs.)
MAX.PREČNIK REZNOG ALATA: 400 mm (16")
MAX. DUBINA SEČENJA: 143 mm (5.6")
